URBAN AKS 4310 | 2-head welding machine

for standard, HFL, cube and double HFL elements

With the URBAN AKS 4310 2-head welding machine, you can weld two corner joints at a 90° angle in just one operation. The AKS 4310 stands for a contemporary machine frame concept, combined with a consistent, efficiency-oriented design.

Anfrage

Category: Double head welding machines Tags: HFL, two-headed, welding machine

2 year warranty on new and refurbished devices
short delivery time
Proven Quality

Description
download

highlights

Weld bead limiter 0.2 mm
with limiting knife
Welding parameters individually adjustable
PLC control
Massive welding head construction
automatic welding head positioning
Profile height up to 200 mm
Extensive profile support
Minimum dimensions with maximum profile width

Options

Reinforced support arms
machine bed extensions
HFL and Cube function
Special heating elements for double HFL
Teflon supply coil
Seal shaper
Stationary welding head left or right

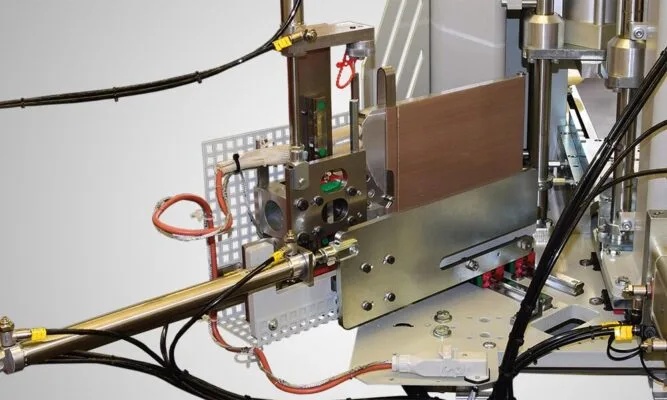

Perfect welding results with HFL

The optional equipment for wood-window-look welding offers you the opportunity for customer-oriented product solutions.

Outstanding flexibility

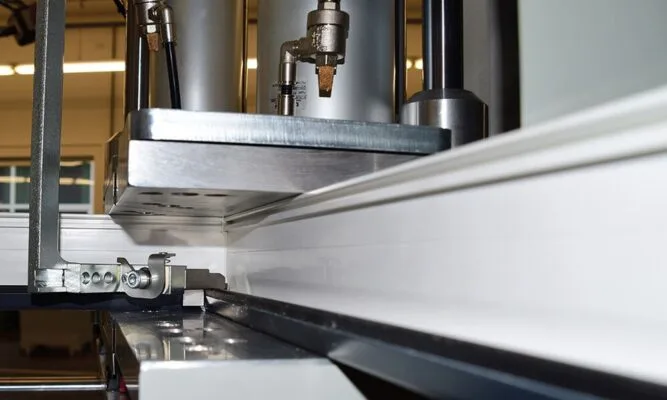

The seal is brought into shape with the automatic seal shaper that scans the inside corner and the corresponding welding allowances. The print heads are easy to replace thanks to the quick-change system.

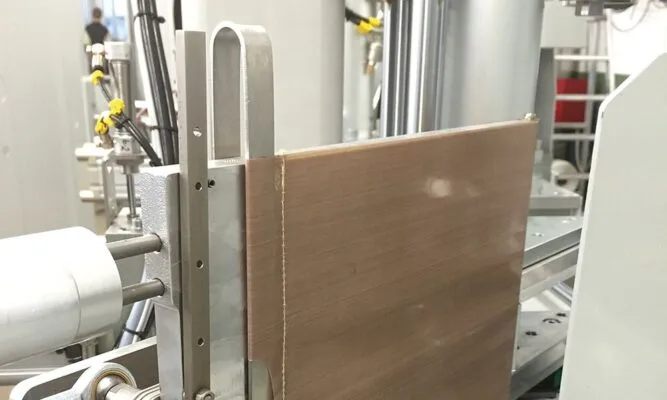

Teflon quick change system

Due to the easy accessibility to the heating element, a comfortable Teflon change without removing the heating element is guaranteed in the shortest possible time. The teflon supply spool enables optimal utilization of the teflon.
